PMP 115 SS316 Magnetic Sealless Pump

Magnetic Sealless Pump PMP-115-SS316

Magnetic Sealless Pump

PMP-115-SS316

Request Quote

PUMP SPECIFICATIONS

Pump Model PMP-115
Connection (Suction) 1 1/4 BSP Female
Connection (Discharge) 1 BSP Male
Max. Flow(Ltrs/Min) 100
Max. Head(Meter) 11.5
Std. Duty Point Q/H 50 LPM/ 3 Mtr
Sp. Gr.Limit 1.3
Motor/Kw 0.75 KW
Phase 1-3

All pump models are available in flame proof motor also.

S S SERIES PRECISION’S SEALLESS

Explosion proof type centrifugal pump in stainless steel is now introduced in response to the process industry growing concern for the environment, the safety of plant personnel, and the high ongoing cost of mechanical seal maintenance. It is an ideal pump for use in installation handling toxic, noxious, inflammable or corrosive liquids such as Nox or freongas where leakage to atmosphere cannot be tolerated. This sealless process pump is also applicable to slurry or the liquid of temperature up to 450 deg/c. S S series Pumps are also available in S. S. 304, S. S. 316, L, Alloy-20, Hastelloy - BC, Monel and Titanium.

SEALLESS

Pumpage is hermitically sealed in a thick, rugged stainless steel pump casing. Magnetically driven, sealless pump construction assures you of leak freeness. The pump never soils surroundings, but maintains safe and clean environment.

DRASTICALLY SAVES MAINTENANCE COSTS

Silicon Carbide wet bearings, the core of pump, extensively reduce wear and corrosion, and provide extremely long life (interchangeable front and rear). Thanks to its Back pull - out design and slip – fit construction, Precision's Pumps are easy to disassemble and reassemble on – site without special tools or skills required. Easy of maintenance extensively curtails the relative costs and resolves the shortage problem of plant manpower.

EXTREMELY SAFE PUMP DESIGNS

The pump is explosion - proof design. Silicon carbide bearings, the only frictional parts in wet end, eliminate the possibility of jamming by rotational contact. Pump and motor are separately positioned so that leak of pumpage if any never affects electrical equipment. Optinal high - pressure secondary containment is available to eliminate pumpage leak through corroded rear casing. Pump and rear casing are completely drainable through a casing drain plug.

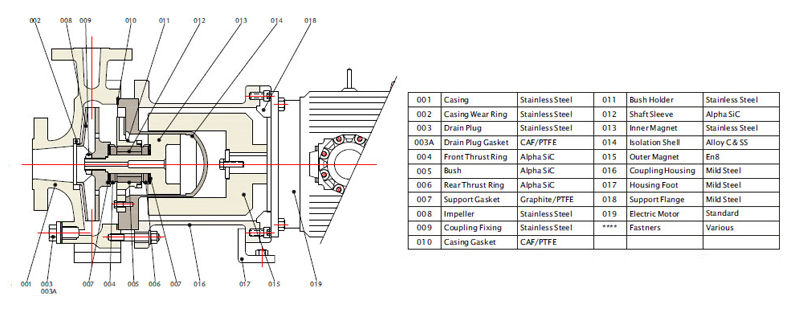

CONSTRUCTION

PUMPS PARTS M.O. C
Volute Casing S. S. 316-L
Impeller S. S. 316-L
Rear Casing S. S. 316-L
Gasket PTFE / Grafoil
Shaft Sleeve Silicon Carbide
Bush Bearing GFR- PTFE, Carbon' Silicon Carbide
Front Thrust Washer Tungsten Carbide, Silicon Carbide
Rear Thrust Washer Tungsten Carbide, Silicon Carbide
Shaft S. S. 316 L
Magnetic Sealless Pump PMP-115--SS316
Magnetic Sealless Pump PMP-115--SS316
